Answering the search intent for 20″ round duct transitions, this guide highlights five practical options that fit common square-to-round or round-to-round transitions. These products are best for HVAC installers, remodelers, and DIYers working with 20″ square or round duct openings. Each option is chosen for compatibility with 20″ round duct, ease of installation, and durability. Read on to compare sizes, materials, and ideal use cases to choose the right transition piece for your project.
Summary of chosen products
| Product | Best For | Key Benefit | Notes |
|---|---|---|---|
| RDP 20″ x 20″ x 20″ Square-to-Round Transition Box | Ceiling registers to round duct | Standardized 28 ga galvanized steel | Check diameter vs duct |
| RDP 20″ x 20″ x 16″ Square-to-Round Transition Box | Smaller diameter round connection | Lightweight, USA-made | Diameter based on duct |
| RDP 20″ x 20″ x 18″ Square-to-Round Transition Box | General square-to-round transitions | Rigid galvanized steel | Same family, verify sizing diagram |
| Bowen Metals 20″ x 12″-14″ Square-to-Round Adapter | 20×12 opening to 14″ round | Versatile rectangular-to-round adapter | Best for mixed duct layouts |
| Duct Outlet 20″ Round Reducer with Collar | Reduce larger round to smaller size | Smooth tapered single-wall | 3-piece taper option available |
RDP Square to Round Transition Box (24″ x 24″ x 20″)
Best for larger 20″ round connections where a square duct feeds a ceiling register or a larger round run. This 24″ x 24″ x 20″ box is built from heavy-duty 28-gauge galvanized steel and made in the USA. It follows a standard W x L x D size breakdown and relies on the round-duct diameter to determine fit. Suitable for installations requiring a robust transition in commercial or residential settings. Use caution to ensure your duct diameter matches the transition’s round side.
RDP Square to Round Transition Box (20″ x 20″ x 14″)
Best for projects needing a compact 14-inch round connection from a 20″ square opening. The unit is described as heavy-duty 28-gauge galvanized steel, manufactured in the USA, with a size diagram to guide proper selection. This is a practical choice when space is tight or a lighter-duty transition is acceptable. Avoid this if your duct diameter requires a larger round connection than 14 inches.
RDP Square to Round Transition Box (20″ x 20″ x 20″)
This 20″ x 20″ x 20″ transition box is suited for standard, moderate-size round connections from a square plenum or duct. It emphasizes the safe, straightforward connection to round duct with its 28-gauge galvanized steel construction. Best for general use where a square-to-round fit is needed. The size diagram should be consulted to match the correct round diameter. Consider a larger unit if your run requires extra clearance for insulation or fasteners.
RDP Square to Round Transition Box (20″ x 20″ x 16″)
Best for mid-range round connections from a 20″ square duct system, this 16-inch round option balances compactness with capacity. The product is described as heavy-duty 28-gauge galvanized steel, USA-made, with a size diagram to locate the right match. Choose this if space is limited but a full transition to round is needed. Better for smaller round runs than the 20″ x 20″ x 20″ variant.
RDP Square to Round Transition Box (20″ x 20″ x 18″)
Best for standard 18-inch round connections from a 20″ square duct, this transition box provides a robust steel build with a clear sizing diagram. It suits many ceiling-attach applications where a direct square-to-round transition is required. A limitation is that the appropriate round diameter must be confirmed to ensure compatibility with your duct system.
20″x12″-14″ Square-to-Round Duct Transition Adapter
Best for adapting a 20″ x 12″ square opening to a 14″ round duct, this Bowen Metals adapter offers a practical, rectangular-to-round transition. It’s a galvanized steel construction, designed to fit a range of HVAC layouts. Choose this if your project involves converting a rectangular duct to a smaller round run. Caution: verify that the 14″ round matches your intended duct diameter for a proper seal.

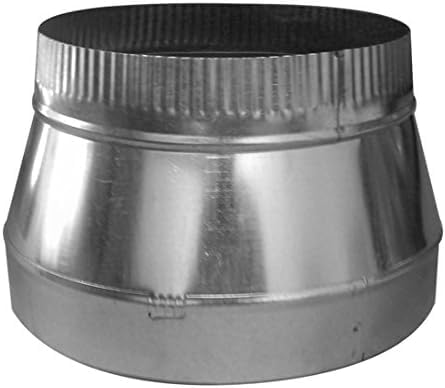

20″ Round Duct Reducer with Collar
This 20″ round duct reducer with collar provides a smooth tapered transition between larger and smaller round ductwork. It is described as a galvanized steel, single-wall reducer, commonly referenced as a Surefit taper. This option is best when a clean airflow path is needed during size changes. Better for straightforward reductions; avoid if a multi-piece taper is required for complex layouts.
Buying Guide
What should I consider when choosing a 20″ round duct transition?
- Duct diameter vs. transition size: Ensure the transition’s round opening matches your duct to avoid leaks.
- Material and gauge: Heavier gauges (like 28 ga galvanized steel) offer durability but may require more effort to install.
- Installation space: Larger square-to-round boxes require more ceiling or plenum clearance.
- Application type: Ceiling registers, returns, or straight runs may benefit from different transition shapes.
- Compatibility with accessories: Check if you need an adapter versus a straight reducer with a collar.
Practical considerations
- Use size diagrams provided by each product to select the correct match for your duct diameter.
- Consider potential insulation or sealing requirements around transitions in conditioned spaces.
- Prefer transitions with USA-made construction for consistent fabrication standards.
Comparison at a glance
- Best for general square-to-round transitions: RDP 20″ x 20″ x 20″ and 18″ variants
- Better for smaller round connections: 14″ and 16″ round options
- Choose this if space is constrained: 20″ x 12″-14″ adapter
- Avoid if you need a larger round diameter than the listed options
FAQ
- What is a square-to-round transition box used for? It connects a square duct to a round duct or ceiling register, enabling compatible airflow paths.
- How do I choose the correct size? Refer to the size diagram and match the round diameter to your duct, not the square dimension.
- Are these made in the USA? Some are described as USA-made; verify with the product listing and manufacturer claims.
- Can these be sealed to prevent leaks? Yes, proper sealing with approved sealants or gaskets around the transition is recommended.
- Do I need a reducer or adapter for a 20″ round duct? It depends on the square opening and the target round diameter; choose according to the intended airflow path.
- Is heavier gauge always better? Higher gauge (thicker metal) provides durability but may be harder to work with in tight spaces; balance needs with installation conditions.
