If you need reliable protection for three-phase HVAC equipment, a 3-phase monitor helps prevent damage from phase loss, reversal, or voltage imbalances. This guide focuses on practical, install-ready options for commercial and residential HVAC setups. The top picks cater to installers who want real-time fault detection, easy configuration, and compatibility with standard electrical panels. The buyers most likely to seek these devices are controls technicians, facilities managers, and system integrators aiming to minimize unplanned downtime.
| Product | Best For | |
|---|---|---|
| ICM401A Phase Monitor | General HVAC protection | Wide voltage range and clear LED fault indication |
| IAMMETER WEM3080TD | Real-time energy monitoring with Delta systems | Wi‑Fi data, cloud dashboards, and multi-site management |
| ICM450APLUS | Advanced phase monitoring with backlit display | Simultaneous three-phase RMS monitoring and fault memory |
| Time Mark C2652 | Adjustable thresholds and reliable reset options | Phase loss, low voltage, and phase reversal with restart controls |
| YWBL-WH RD6-W | Panel-level protection with LCD readout | Over/under voltage, phase failure, and fault records |
IAMMETER WEM3080TD Three-Phase Wi-Fi Energy Meter
The IAMMETER WEM3080TD is a Delta-compatible, three-phase energy and fault monitor designed for real-time analytics. It measures voltage, current, active power, energy, power factor, and frequency with high precision, and streams data via Wi‑Fi to IAMMETER Cloud dashboards. This model suits facilities that require ongoing energy visibility alongside fault detection. Best for: facilities teams and system integrators needing remote monitoring and centralized energy reporting. Limitation: relies on network connectivity for real-time data access, which may introduce latency during outages.
ICM Controls ICM401A Phase Monitor with Surge Protection
The ICM401A provides comprehensive 3-phase protection, including phase loss, phase reversal, and unbalance alarms. It covers a wide voltage range from 190 to 600 VAC at 50/60 Hz, making it a versatile option for diverse HVAC installations. Bright green LEDs indicate normal operation, while red LEDs signal faults. Best for: service technicians and facility engineers who want straightforward visual fault indication and broad compatibility. Caution: ensure installation wiring follows local electrical codes to avoid incorrect fault signaling.

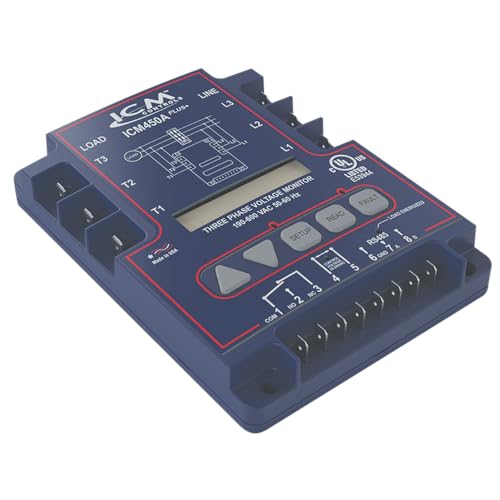

ICM Controls ICM450APLUS+ Programmable 3-Phase Monitor
ICM450APLUS+ offers a backlit LCD, simultaneous true RMS voltage monitoring across all three phases, and factory calibration. It supports fault memory and Modbus RS-485, which helps integrate with building management systems. Best for: technicians who require clear on-panel diagnostics and remote control via Modbus. Limitation: more complex to configure, so it’s better suited for trained personnel or automated control streams.
ICM Controls ICM450A Programmable 3-Phase Monitor
The ICM450A provides a built-in three-digit display for quick programming, along with real-time diagnostics. It enables programmable voltage and frequency settings and supports a programmable restart control (automatic or manual). Best for: applications requiring hands-on configuration and on-site troubleshooting. Caution: ensure the device’s programmable parameters match your system’s electrical specifications to prevent misconfiguration.
Time Mark C2652 Three Phase Monitor
The Time Mark C2652 protects against phase loss, low voltage, and phase reversal, with adjustable trip and restart delays and options for either automatic or manual reset. It is well-suited for HVAC equipment that needs configurable protective thresholds and flexible reset behavior. Best for: facilities that want customizable protection timing. Limitation: may require careful setup to align with specific HVAC operating ranges.
YWBL-WH RD6-W 3-Phase Monitor With LCD
The RD6-W provides LCD readouts for real-time voltage and fault status, with protections for overvoltage, undervoltage, phase failure, and phase error. Its universal 208–480 VAC input makes it adaptable for a wide range of HVAC panels. Best for: panel builders and OEMs seeking an all-in-one display and protection device. Limitation: LCD visibility can be challenging in bright environments without proper mounting or enclosure.
Buying Guide
Key considerations help narrow the field to the right 3-phase monitor for HVAC systems. Below are practical questions and answers to guide selection.
- What voltage range do I need? Some devices cover 190–600 VAC, others are fixed to 208–480 VAC. Choose based on your system’s supply and future-proofing needs.
- What fault conditions are essential? Phase loss, phase reversal, under/overvoltage, and voltage imbalance are common. Ensure the monitor supports the required set of protections.
- Should I prioritize on-device displays or remote monitoring? Devices with backlit LCDs or LED indicators help local diagnostics; Wi‑Fi or Modbus options enable integration with building management systems.
- Is programmable control important? Programmable restart, delay settings, and configurable trip thresholds provide flexibility for commissioning and maintenance.
- Do I need cloud or multi-site capabilities? If you manage multiple HVAC sites, a Wi‑Fi-enabled meter with cloud dashboards can streamline oversight and alerts.
- How important is ease of installation? Compact form factors, clear wiring diagrams, and compatibility with standard panels simplify retrofits and new installs.
FAQ
- What is a 3-phase monitor used for in HVAC systems?
It detects phase loss, phase reversal, and voltage imbalances to protect motors and compressors from damage.
- Can these monitors work with universal three-phase power?
Many models support a wide range (often 190–600 VAC or 208–480 VAC). Always verify your supply is within the device’s range.
- Do monitors require external power?
Some units draw power from the monitored circuit; others offer optional external power or rely on the measuring circuit. Confirm installation requirements before wiring.
- Is remote monitoring available?
Wi‑Fi-enabled models transmit data to cloud dashboards for real-time monitoring and historical analysis.
- Which monitor is best for OEM panel integration?
Devices with RS-485 or Modbus, plus factory calibration and fault memory, are preferable for OEM integrations and automated controls.
- What maintenance should I expect?
Regular checks of wiring integrity, LED indicators, and any fault memory logs help ensure ongoing protection.
